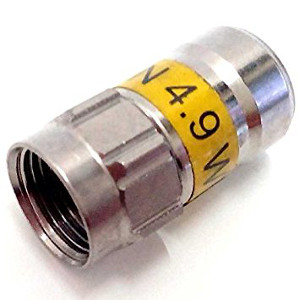

Cablecon Connectors F-56 RG6 Self Install (FP03W-SI56)
, ,

Cablecon Connectors F-56 RG6 Self Install (FP03W-SI56)

  • Approved to 3 GHz/Shaft resistance: 75 ohms
  • Transfer Impedance: 5-30 MHz < 5 mOhm/m/Return Loss: based on a 1000 MHz 4 dB/at 3000 MHz 28 dB
  • Screening rate: 30 – 862 MHz 110 dB/862 – 3000 MHz) 90 dB
  • ‘Note: The plug can only be in conjunction with the optional Cabelcon “Seal Ring for F Plug Waterproof.
  • Max. Current Load – see Kabeldaten/Max. Tensile strength (overall) 200 N
SKU: FP03W-SI56 Categories: , ,
