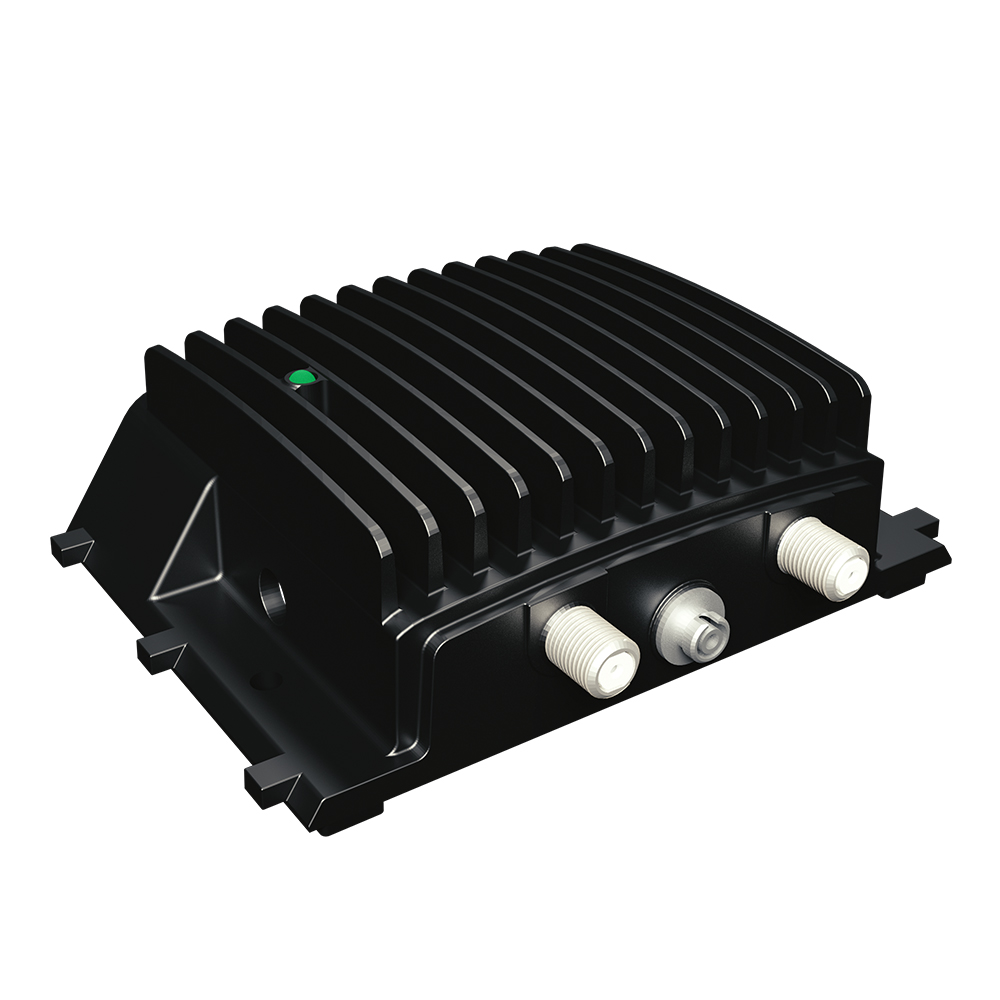

Global Invacom dSCR GTU
Global Invacom dSCR GTU - Image 2
Global Invacom dSCR GTU - Image 3
,

Global Invacom dSCR GTU

The D000199 dSCR GTU converts optical power to RF power (4 satellite bands and FM, DAB, DTT). Terrestrial signals are overlaid onto both output ports. All units have built in AGC which allows a wide dynamic range of optical levels without affecting output power and quality.

Product code: D000199

This is an alternative product to the standard Quad GTU. The dSCr GTU has auto syncing outputs and is therefore compatible with legacy and SATCr decoders. It does not require the external MUDS switch when a SATCr decoder such as Explora us used.

Each output can operate as Legacy, SCR automatically detects which box is connected
and sets itself up accordingly. Terrestrial signals are available on each output if used in an ODU32 system

  • Optical to RF convertor (Satellite and FM,DAB,DTT )
  • Automatic Gain Control (AGC)
  • Terrestrial signals overlaid onto each output

The dSCR GTU converts optical power to RF power (4 satellite bands and FM,DAB,DTT ). All units have built in AGC which allows a wide dynamic range of optical powers without affecting output power and quality. One LED indicator allows the user to monitor the status of the unit. Configurable for any user bands. Able to work in legacy, analogue SCR (aSCR) and digital SCR (dSCR) modes.

SKU: D000199 Categories: ,
Satellite (Electrical)
RF frequency range (MHz) 950 – 2150
Output impedance 75Ω
Return loss 10dB (min.)
Gain variation across band 10dB (max.)
Nominal output level (Legacy) 75dBμV *
Nominal output level (dSCR) 72dBμV *
Terrestrial rejection 35dB (min.)
DTT, DAB and FM (Electrical)
RF frequency range
DTT 470-790MHz
DAB 174-240MHz
FM 88-108MHz
Nominal impedance 75Ω
Return loss 8dB (min.)
Nominal DTT output Quad (Quatro) 71dBμV8 (for 6 multiplexes)
Gain variation across band 5dB (max.)
950-2150MHz rejection 35dB (min.)
FM, DAB, DTT & Satellite (Optical)
Optical wavelength 1100nm to 1650nm
Optical input power (typical) -12dBm# -3dBm  (#for systems with 19.2dB optical budget)
Control signals (Quad only)
Vertical select voltage 11.5V ~ 14.0V  (13V nominal)
Horizontal select voltage 16V ~ 19V  (18V nominal)
Low / High band 0/22KHz tone
DC Specification
Input voltage range 20V
Current consumption 430mA max
Connectors
Output F x 2
Power supply 2.1mm Jack
Optical input FC/PC
Optical cabling
Fibre type Single mode
Standard GI – approved G657a
Environmental Specification
Operating temperature 0°C to +50°C
Storage temperature -40°C to +70°C
Dimensions
Size excl. plastics (W x H x D) 134mm x 105mm x 43mm
Size incl. plastics (W x H x D) 120.8mm x 80.1mm x 26.3mm
Weight 450g excluding PSU
