Product Overview

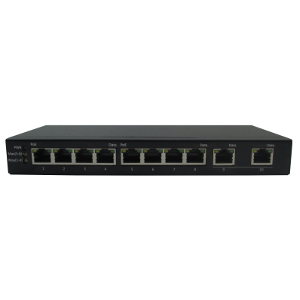

Space 10port PoE Switch (8ports Megabit PoE + 2ports Megabit non PoE uplink). The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
The PoE Switch provides a simple, cost-effective, and non-blocking wire-speed performance with metal shape for desktop deployment in compact housing, office or department network application.
Features
Interface information
-
10 x 10/100Mbps RJ45 Ports
-
8 x PoE Ports(Port1~8)
PoE(Power over Ethernet）
-
Complies with IEEE802.3af/at Power over Ethernet
-
Supports PoE Power up to 32W for each PoE port
-
Auto detect power device
-
PoE Overload Alarm LED
-
Remote power and Data feeding up to 100m
Switch
-
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
-
2K MAC address, automatic address learning and address aging
-
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
-
External power supply can be chosen by the customer
Specification
Hardware information
| Standard |
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
|
Network Media(Cable) |
10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) |
|
LED |
System: Power (Green) PoE Overload Alarm Led: Max1(1-4)(Orange),Max2(5-8)(Orange) Per port: PoE (Orange) LINK/ACT（Green） |
|
MAC Address Table |
2K, Auto-learning, Auto-aging |
| Transfer mode | Store-and-Forward |
| Switching Capacity | 2G |
| Dimensions (L x W x H) |
216 *93 *28 mm |
| Fan | N/A |
| Power Output |
55VDC /2.2A ( 120W) |
| PoE（Power Over Ethernet） | |
|
PoE port |
Port1~8 |
|
PoE Power on RJ-45 |
Mode A 1/2(+),3/6(-) |
|
PoE Power Output |
Per port 55V DC Max.32W |
|
PoE Power Budget |
120W |
| Environmental | |
|
Operating Temperature |
0°C ~ 40 °C (32 °F ~104°F ) |
|
Storage Temperature |
-40 °C ~ 70 °C (-40 °F ~158°F ) |
|
Operating Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 90% non-condensing |
