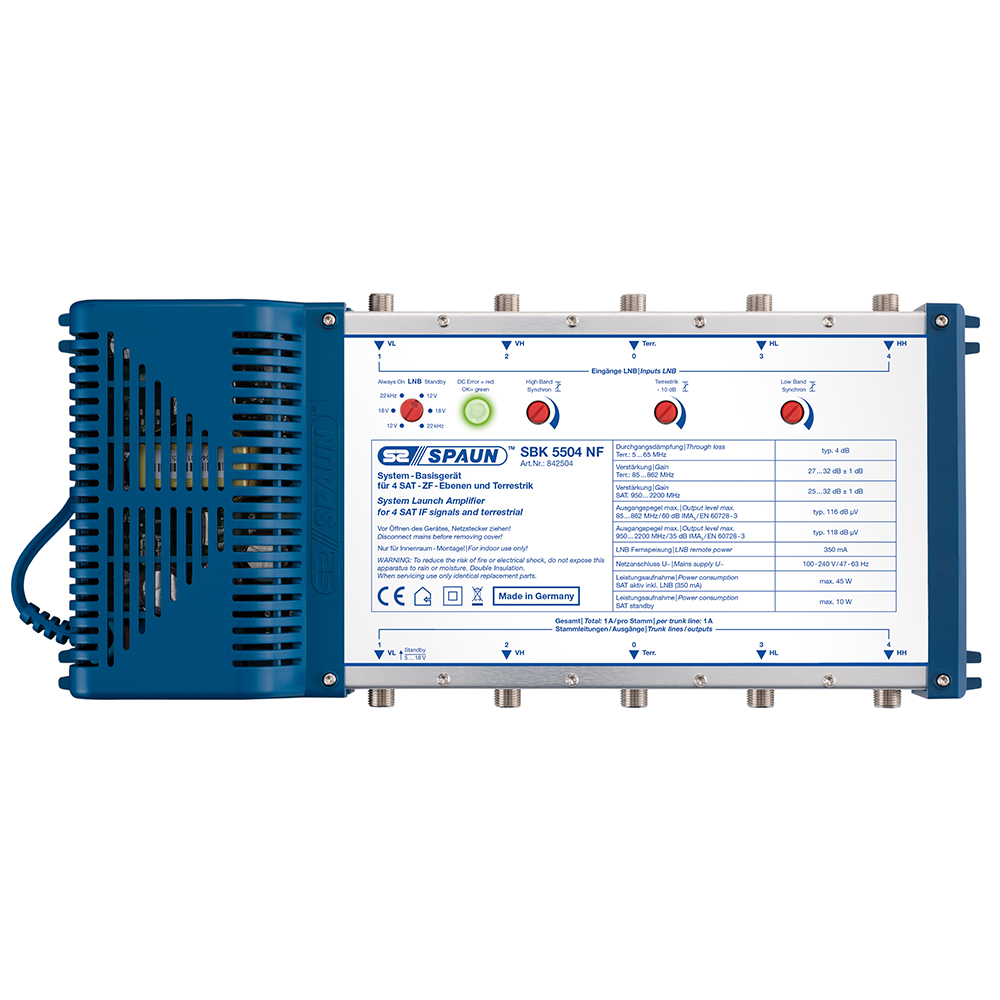

Spaun Launch Amplifier 4 SAT-IF - SBK5504NF


Passive return path compatible terrestrial.
12 V / 200 mA remote power for the active cascades (SMK 55xx3 FA).
Only usable for Quattro LNB.

Product code: SBK5504NF

Return path compatible
Off-air distribution using push-pull technology
Slope controlled
Level adjusters

For use in:

  • SMATV
  • star distribution
  • System base unit for setting up distribution networks typically> 16 subscribers / receivers

Features:

  • Passive return path compatible terrestrial.
  • 12 V / 200 mA remote power for the active cascades (SMK 55xx3 FA).
  • Only usable for Quattro LNB.
SKU: 217c0e01c182 Categories: , ,
Inputs / outputs 5 / 5
SAT / terrestrial 4 / 1
Loss
Terr. passive 5 … 862 MHz
Loss
Terr. passive 5 … 65 MHz
4 dB
Gain
Terr. active 47 … 862 MHz
Gain
Terr. active 85 … 862 MHz
27 … 32 dB
Gain
SAT IF 950 … 2200 MHz
25 … 32 dB
Output level max.
47 … 862 MHz
60 dB IMA3 / EN 60728 – 3
118 dBμV
Output level max.
950 … 2200 MHz
35 dB IMA3 / EN 60728 – 3
118 dBμV
Rejection: Terrestrial active / SAT typ. 50 dB
Rejection: Terrestrial passive / SAT
Rejection: SAT / terrestrial typ. 55 dB
Isolation
trunk / trunk
typ. 30 dB
Mains power supply U~ 100 – 240 V / 47 – 63 Hz
Power consumption
Terr. active / SAT active
incl. LNB load with
max. 50 W
350 mA
Power consumption
Terr. passive / SAT active
incl. LNB load with
Power consumption
Terrestrial active / SAT standby
max. 12 W
Power consumption
Terrestrial passive / SAT standby
LNB – single remote current 350 mA
Current for post amplifier max. 18 V / 1 A
Ambient temperature -20 … + 50 °C
Dimensions (mm) 300 x 130 x 52
